Ask Marty: How do you fabricate in-office indirect restorations?

2014 02 13 13 44 51 873 Ask Marty200x200

Q: What is your technique for indirect restorations in your office, without sending it to a lab?

A: There are many ways to fabricate indirect restorations in the office.

The high-tech answer is to use CAD/CAM technology with either Cerec or E4D. You take a digital scan of the prepared tooth, then you can easily mill either a composite or porcelain restoration. This is probably the easiest way to fabricate a very accurate restoration. You then bond in the restoration, check occlusion, and finish.

Indirect restorations can also be fabricated without the use of CAD/CAM technology, which means you can do single-appointment restorations without the upfront expense. However, we cannot produce porcelain restorations this way.

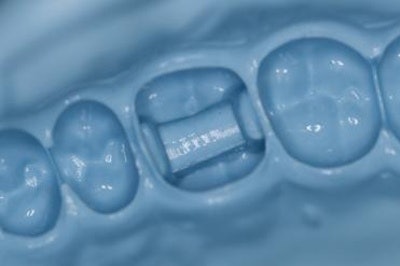

The tooth is prepared and an impression can be taken in alginate (which is very accurate when poured immediately).

2013 01 09 10 29 03 675 2013 01 09 Image1

A silicone model is then produced. You can use Parkell's Mach-2, or Voco's recently released GrandioSO Inlay System for chairside fabrication of indirect composite inlays. This is a complete kit to assist you in fabricating indirect restorations. It is a very fast and inexpensive way to fabricate composite inlays and onlays in your office.

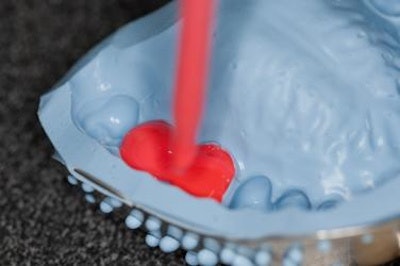

To obtain your working model, you inject the silicone into the impression.

2013 01 09 10 29 02 417 2013 01 09 Image2

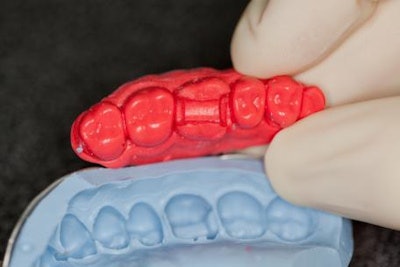

Once the model has set you can start building your restoration.

2013 01 09 10 29 01 745 2013 01 09 Image3

You then can start creating your restoration by injecting composite and shaping it.

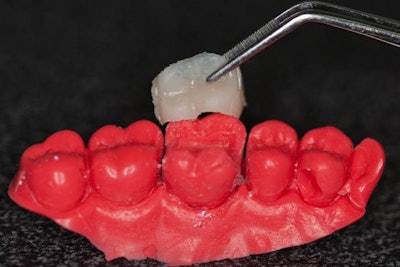

The restoration is then light cured and can be removed easily from the silicone model.

2013 01 09 10 29 00 534 2013 01 09 Image4

Curing can now be continued using your light, and the restoration can be placed into an oven to allow for further conversion of the composite.

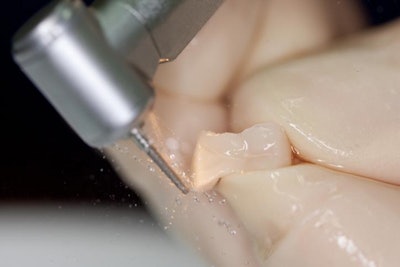

The restoration is then trimmed and can be tried in the mouth.

2013 01 09 10 28 59 914 2013 01 09 Image5

You then follow appropriate bonding protocols when seating the restoration, check occlusion, and finish the restoration.

Full crowns can be fabricated using Natural 1 (DirectCrown). In many cases, these are long-term provisional restorations that you can fabricate in your office. I discussed this topic in a previous column.

Having said all of this, in many anterior cases, it makes much more sense to do lab-fabricated indirect restorations for the improved aesthetics with either porcelain or newer composites materials such as Pearlfect veneers from Mizrachi Dental Lab.

2013 01 09 10 28 57 204 2013 01 09 Image6.

Marty Jablow, DMD, lectures and consults extensively about integrating technologies into the modern dental practice (www.dentaltechnologycoach.com). If you have a technology question for Dr. Jablow, send it to [email protected].
